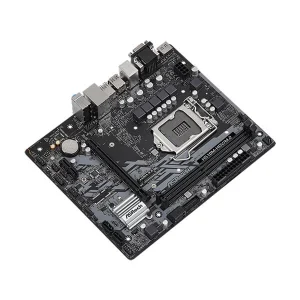

ASRock H510M-HDV/M.2 Motherboard
Original price was: ₹9,000.00.₹5,800.00Current price is: ₹5,800.00.
ASRock H510M-HDV/M.2 Motherboard Supports 10th Gen Intel Core Processors and 11th Gen Intel Core Processors and Supports DDR4 3200MHz (OC).
Features:
- Supports 10th Gen Intel® Core™ Processors and 11th Gen Intel® Core™ Processors
- Supports DDR4 3200MHz (OC)
- 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x1
- Graphics Output Options: HDMI, DVI-D, D-Sub
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- 4 SATA3, 1 x Ultra M.2 (PCIe Gen3 x4 & SATA3)
- 4 x USB 3.2 Gen1 (2 x Rear, 2 x Front)
- 6 x USB 2.0 (4 x Rear, 2 x Front)
- Intel® Gigabit LAN
Intel® LAN
Intel® LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!
Ultra M.2 32 Gb/s (PCIe Gen3 x4 & SATA3)
The PCIe Gen3 x4 Ultra M.2 interface pushes data transfer speeds up to 32Gb/s. In addition, it also supports SATA3 6Gb/s M.2 modules, and is compatible with ASRock’s U.2 Kit for installing some of the world’s fastest U.2 PCIe Gen3 x4 SSDs.
HDMI 4k @60Hz
Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.
Specifications:
| Model Number | H510M-HDV/M.2 |
| Unique Feature | ASRock Super Alloy – Premium 50A Power Choke – Sapphire Black PCB – High Density Glass Fabric PCB ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop |
| CPU | – Supports 10th Gen Intel® Core™ Processors and 11th Gen Intel® Core™ Processors (LGA1200) – 5 Power Phase design – Supports Intel® Turbo Boost Max 3.0 Technology |
| Chipset | – Intel® H510 |
| Memory | – Dual Channel DDR4 Memory Technology – 2 x DDR4 DIMM Slots – Supports DDR4 3200(OC) / 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory – Supports ECC UDIMM memory modules (operate in non-ECC mode) – Max. capacity of system memory: 64GB – Supports Intel® Extreme Memory Profile (XMP) 2.0 |
| BIOS | – 128Mb AMI UEFI Legal BIOS with multilingual GUI support – ACPI 6.0 Compliant wake up events – SMBIOS 2.7 Support – CPU Core/Cache, CPU GT, VCCSA, DRAM, VCCIO, VCCST, VCCIN AUX Voltage Multi-adjustment |
| Graphics | – 11th Gen Intel® Core™ Processors support Intel® Xe Graphics Architecture (Gen 12). 10th Gen Intel® Core™ Processors support Gen 9 Graphics – Three graphics output options: D-Sub, DVI-D and HDMI** – Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096×2160) @ 60Hz with 11th Gen Intel® Core™ Processors – Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096×2160) @ 30Hz with 10th Gen Intel® Core™ Processors – Supports DVI-D with max. resolution up to 1920×1200 @ 60Hz – Supports D-Sub with max. resolution up to 1920×1200 @ 60Hz – Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Port (Compliant HDMI monitor is required) – Supports HDCP 2.2 with DVI-D and HDMI Ports (HDCP 2.3 ready with 11th Gen Intel® Core™ Processors) |
| Audio | – 7.1 CH HD Audio (Realtek ALC897 Audio Codec) – Supports Surge Protection |
| LAN | – Gigabit LAN 10/100/1000 Mb/s – Giga PHY Intel® I219V – Supports Wake-On-LAN – Supports Lightning/ESD Protection – Supports Energy Efficient Ethernet 802.3az – Supports PXE |
| Slots | 11th Gen Intel® Core™ Processors- 1 x PCI Express 4.0 x16 Slot 10th Gen Intel® Core™ Processors – 1 x PCI Express 3.0 x16 Slot – 1 x PCI Express 3.0 x1 Slot |
| Storage | – 4 x SATA3 6.0 Gb/s Connectors, support Intel® Rapid Storage Technology 18, NCQ, AHCI and Hot Plug – 1 x Ultra M.2 Socket (M2_1), supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) |
| Connector | – 1 x COM Port Header – 1 x SPI TPM Header – 1 x Chassis Intrusion and Speaker Header – 1 x CPU Fan Connector (4-pin) – 1 x Chassis Fan Connector (4-pin) – 1 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) – 1 x 24 pin ATX Power Connector – 1 x 8 pin 12V Power Connector – 1 x Front Panel Audio Connector – 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection) – 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection) |
| Rear Panel I/O | – 1 x PS/2 Keyboard Port – 1 x PS/2 Mouse Port – 1 x D-Sub Port – 1 x DVI-D Port – 1 x HDMI Port – 4 x USB 2.0 Ports (Supports ESD Protection) – 2 x USB 3.2 Gen1 Ports (Supports ESD Protection) – 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) – HD Audio Jacks: Line in / Front Speaker / Microphone |
| Software and UEFI | Software – ASRock Motherboard Utility (A-Tuning) – ASRock XFast LAN UEFI – ASRock EZ Mode – ASRock Full HD UEFI – ASRock My Favorites in UEFI – ASRock Instant Flash – ASRock Internet Flash |
| Support CD | – Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar |
| Accessories | – Quick Installation Guide, Support CD, I/O Shield – 2 x SATA Data Cables – 1 x Screw for M.2 Socket |
| Hardware Monitor | – Fan Tachometer: CPU, Chassis, Chassis/Water Pump Fans – Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis, Chassis/Water Pump Fans – Fan Multi-Speed Control: CPU, Chassis, Chassis/Water Pump Fans – CASE OPEN detection – Voltage monitoring: CPU Vcore, +12V, +5V, +3.3V |
| Form Factor | – Micro ATX Form Factor: 8.9-in x 7.4-in, 22.6 cm x 18.8 cm – Solid Capacitor design |
| OS | – Microsoft Windows® 10 64-bit / 11 64-bit |
| Certifications | – FCC, CE – ErP/EuP ready (ErP/EuP ready power supply is required) |
| Warranty | 3 Years |
| Note | *** Features, Price, Specifications are subject to change without notice. |
| Product Code | |
|---|---|
| Brand | |
| Product Type | |
| Sub Form Factor | |
| Supported Memory Type | |
| Platform | |
| Chipset | |
| Socket | LGA1200 |
