Features:
The CORSAIR iCUE H170i ELITE CAPELLIX XT Liquid CPU Cooler provides powerful, high-performance cooling for your processor, with CORSAIR AF RGB ELITE fans, a 420mm radiator, and ultra-bright CAPELLIX LEDs.
EFFICIENT AND SILENT CPU COOLING
All-in-one liquid coolers don’t dissipate processor heat inside the case like traditional air coolers, but instead guide it to the edge of the case and blow it out with dedicated fans. This results in cooler components and less noise. The ELITE CAPELLIX XT is an upgrade to our most powerful CPU cooler:
- Includes our best performing AF RGB ELITE fans.
- Uses extreme performance XTM70 thermal paste.
- Provides superior lighting effects with CAPELLIX LEDs.
OUR BEST PERFORMING RGB FANS
CORSAIR AF RGB ELITE PWM fans deliver massive low-noise airflow with AirGuide technology for extreme CPU cooling performance.
Anti-vortex vanes ensure more uniform airflow over radiator fins and more optimal heat dissipation.
EXTREME PERFORMANCE THERMAL PASTE
All ELITE CAPELLIX XT AIOs include pre-applied CORSAIR XTM70 Extreme Performance thermal paste for maximum heat transfer from your high-end processor to the cooler cold plate.
For reliably high cooling performance, every step in the heat transfer and dissipation chain matters.
PERFORMANCE NEVER LOOKED BETTER
The ELITE CAPELLIX XT cooler pump head houses 33 ultra-bright CAPELLIX LEDs to go along with its RGB fans. When you add powerful, low-noise cooling to the mix, your system will look great and will run even better.
ZERO RPM MODE
Reduce fan noise to a minimum. When your computer doesn’t need active cooling, Zero RPM cooling profiles in CORSAIR iCUE software allow fans to stop entirely.
UPGRADE TO LCD ANYTIME
When you want to take it to the next level, you can upgrade your CPU cooler by swapping the original pump cap with the ELITE LCD Upgrade Kit.
SMARTER COOLING WITH iCUE CONTROL
An included iCUE COMMANDER CORE RGB lighting and fan speed controller gives you precise speed and lighting control over up to six CORSAIR RGB fans.

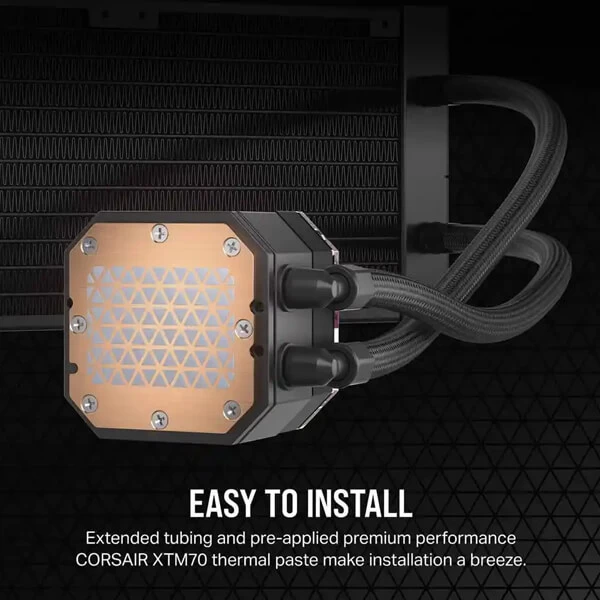

EXTENDED TUBING AND EASY INSTALLATION
Extended tubing length of 400mm (H100i, H115i) / 450mm (H150i, H170i), modular tool-free mounting brackets, and pre-applied XTM70 thermal paste make for easy installation on the latest Intel® and AMD® motherboard sockets, including LGA 115X, 1200, 1700, 2011, and 2066, plus AMD Socket AM4, AM5, and sTRX4/sTR4.
SOCKET COMPATIBILITY
AM4, AM5, sTRX4/sTR4
LGA 115X, 1200, 1700, 2011, 2066
Specifications:
| Cold Plate Material |
Copper |
| Radiator Material |
Aluminum |
| PWM |
Yes |
| CORSAIR iCUE Compatibility |
Yes |
| Tubing Length |
450mm |
| Coldplate Dimensions |
56 x 56mm |
| Tubing Material |
Black Sleeved Low-Permeation Rubber |
| Fan Dimensions |
140mm x 25mm |
| Fan Speed |
500 – 1700 RPM ±10% |
| Weight |
1.95 |
| Number of Fans |
3 |
| Cooling Socket Support |
Intel 1700, 1200, 1150, 1151, 1155, 1156, 2011, 2066
AMD AM4, sTRX4, sTR4 |
| Lighting |
RGB |
| Radiator Size |
420mm |
| Fan Airflow |
19.5 – 89.0 CFM |
| Fan Static Pressure |
0.16 – 2.0 mm-H2O |
| Noise Level |
5 – 33.8 dBA |
| Warranty |
5 Years |
| Note |
*** Features, Price, Specifications are subject to change without notice. |
