HYTE THICC Q60 240mm AIO Liquid Cooler (FAN-HYTE-Q60-BW) – FAN-HYTE-Q60-BW

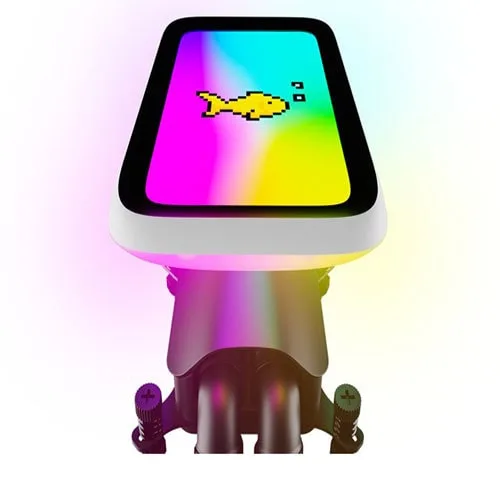

5” Ultraslim IPS Display
720 x 1280 resolution, 60Hz refresh rate, and 300 nits of brightness for an incredibly crisp and smooth visual experience delivered to your physical world with real life depth

42-Pixel qRGB Array
Brings your system to life, deeply soaking it in mesmerizingly saturated color

Double-Hinged Floating Spout
Rises above and takes aim at your attention with 90 degrees of adjustable swivel

Dual Harmonic Pumps
Adjustable 2,000 – 4,500 RPM circulate liquid with silenced acoustics and groundbreaking efficiency, effortlessly taming even the hottest of CPUs

Ginormous Heat Exchanger
240mm smol and 52mm THICC, this short king cuts above the competition with class leading thermal performance, utilizing a parallel dual-pass design to maximize both cooling capacity and efficiency

32mm THICC FP12 Fans
Dynamic adjustable 0 – 3,000 RPM fan speed with Fiberglass reinforced Liquid Crystal Polymer supercharges the fan blades, delivering a monstrous 105.8 CFM airflow and 8.14 mm-H2O static pressure

Nexus Link Primary Node
Utilizes HYTE’s revolutionary new digital hardware interface for sequential lighting and cooling control with both thermal and positioning sensor data over a single cable, capable of supporting up to 34 devices across 2 channels with Nexus Link AmpScale

Luxury Product Experience
Full compatibility across a range of AMD and Intel sockets, concealed cable harness for a clean look, seamless OTA updates, and 6-year warranty for piece of mind

Technical Detail
Brand ; HYTE
Modal : FAN-HYTE-Q60-BW

Technical Spec
Weight : 5.1 lbs
CPU Compatibility : Intel Socket LGA 1700, 1200, 115X, 2011*, 2066* – AMD Socket AM5, AM4, TR4* – *Optional brackets, please contact support
Heat Exchanger Dimensions : 120 x 288 x 52 mm
Heat Exchanger Material : Aluminum
Heat Exchanger Technology : Parallel Dual Pass
Cold Plate Dimensions : 56 x 56 x 1.5 mm
Cold Plate Material : Copper
Cold Plate Technology : Micro-Skived Fin
Magnetic Interchangeable Cold Plate Cover ; Anodized Aluminum
Tube Length : 400 mm
Tube Material : CIIR Rubber with Nylon Sleeving
Total CPU Block + LCD Screen Height
; 105 mm
Fans : THICC FP12 x 2
Fan Dimensions : 120 x 120 x 32 mm
Fan Speed : 0 – 3,000 RPM
Air Flow : 105.8 CFM
Static Pressure : 8.14 mm-H2O
Noise Level : <10.0* – 47.3 dBA – *Measuring below 10 dBA was not possible in our test chamber due to the noise floor
Bearings : Fluid Dynamic Bearing
Fan Blade Material : Fiberglass Reinforced Liquid Crystal Polymer (LCP)
Fan Frame Material : Polycarbonate
Fan Connector : Nexus Link Type-M
Nexus-Link Channels : 1x Type-C, 1x Type-M
Maximum Devices – Single Channel : 18
Maximum Devices – All Channels : 34
Maximum Current – Single Channel : 8A/12V
Maximum Current – All Channels : 15A/12V
Maximum PSU Power Draw : Up to 180W depending on the number of connected Nexus Link devices
LCD Size : 5 Inches
LCD Mounting Orientation : Portrait Only
LCD Resolution : 720 x 1280 (293 PPI)
LCD Panel Type : IPS
LCD Hinge : Double-Hinged Floating Spout
LCD Refresh Rate : 60 Hz
LCD Brightness : 300 nits
Bias Lighting : 42-Pixel qRGB Array
Logo Lighting : 4-Pixel qRGB Array
Pump RPM : 2,000 – 4,500 RPM
Pump Bearing : Ceramic
Pump Impeller Diameter : 24 mm
Coolant Operation Temperatures : -10 to 60 C
Processor : Quad-Core 64-bit ARM Cortex
Speed : 1.3 GHz
RAM : 2GB DDR4 @2666 MT/s
Storage : 32GB eMMC
Graphics Engine : 500 MHz
Co-Processor : 32-Bit ARM Cortex-M4
Input Connections : USB 2.0 Header, PWM, 6-Pin PCIe Power
Included Accessories : Intel Mounting Kit + AMD Mounting Kit + Fan Screws
Thermal Paste : Yes, Pre-Applied
Nexus Powered : Yes
Warranty : 6 years
